Ram 2500 Front-Wheel Collision: Hidden Mechanical Damage

By Curtis Castiglione

When a heavy-duty truck like a 2020 Ram 2500 is involved in a front-end collision that impacts the wheel, the insurance claim often becomes significantly more complex than a standard body repair. While a dented fender or a scraped bumper is easy to see, the mechanical damage hidden behind the wheel is frequently underestimated—or missed entirely—during the initial insurance estimate.

If the impact was significant enough to damage the wheel, the insurance company should cover the resulting mechanical repairs, provided the damage is proven to be a direct result of the accident. However, getting those repairs paid for requires a specific diagnostic process and an understanding of how these heavy-duty systems function.

Does insurance cover the mechanical damage to my suspension after a front-wheel impact?

Yes, insurance typically covers mechanical damage to the suspension, steering, and braking systems if it was caused by a covered peril like a collision. However, unlike a crushed door, mechanical damage is not always obvious.

Insurance adjusters often write preliminary estimates based on what they can see while the truck is sitting in a driveway. To get the mechanical damage covered, your repair facility will likely need to perform a teardown and a diagnostic alignment to provide the insurance company with mathematical proof that internal components are compromised.

Why the Ram 2500 is Unique in a Collision

The Ram 2500 is a heavy-duty machine designed for high-payload towing and hauling. Because its suspension and steering components are robust, some insurance adjusters assume they are nearly indestructible.

The reality is the opposite: because these parts are so rigid, they do not give or absorb energy like a smaller passenger car. Instead of a component bending and absorbing the shock, the force of a wheel impact travels directly through the tire and wheel and into the steering knuckle, hub assembly, and control arms. This path of least resistance often results in bent heavy-metal components that look fine to the naked eye but are functionally ruined.

The Steering Knuckle: The Critical Link

The steering knuckle is the component that holds the wheel hub and allows the front wheels to turn. In a 2020 Ram 2500, a significant lateral impact (hitting a curb, another vehicle's tire, or a median) can bend this knuckle.

• The Hidden Bend: Even a bend of just two or three millimeters can make it impossible to bring the truck back into factory alignment specifications.
• The Safety Risk: A bent knuckle causes pulling, accelerated tire wear, and can interfere with the truck's stability control systems.
• Repair vs. Replace: From a professional repair perspective, technicians never attempt to straighten bent steering knuckles. Because they are critical safety components made of cast steel or iron, they must be replaced.

Brake System and Safety Inspections

The collision energy that hits the wheel does not stop at the suspension. The braking system is often a silent victim of wheel impacts:

• Rotors: The rotor can be warped or cracked by the lateral force of the impact.
• Calipers: The mounting points on the steering knuckle can be stressed or distorted.
• Hoses: During the impact, the brake hose can be stretched beyond its design limit, leading to internal failure that might not leak immediately but could fail under hard braking later.

Why Did My Estimate Change? (The Supplement Process)

It is very common for an initial insurance estimate to increase once the vehicle is at the shop. This is known as the supplement process.

1. Visual Inspection: The adjuster sees a scratched wheel and writes for a wheel recondition or replacement.
2. Teardown: The shop removes the wheel and places the truck on an alignment rack.
3. The Proof: If the alignment readings show Camber or Caster values that are out of range and not adjustable, it serves as objective evidence that a component (like the steering knuckle) is bent.
4. The Supplement: The shop provides the insurance company with the alignment report. This mathematical proof overrides a visual opinion, documenting the need for the insurance company to pay for the necessary mechanical parts.

The Role of ADAS and Calibration

Modern 2020 Ram trucks are equipped with Advanced Driver Assistance Systems (ADAS). This includes the Steering Angle Sensor (SAS), which tells the truck's computer exactly where the steering wheel is pointed.

If a front-wheel impact bent a component, the steering wheel will likely be off-center. Simply replacing the parts and aligning the wheels is not enough. The SAS must be recalibrated using a professional scan tool so the traction control and lane-departure systems function correctly. If your estimate does not include Scantool Calibration or SAS Reset, the repair is technically incomplete and potentially unsafe.

Practical Steps: What You Should Do

If your Ram 2500 has suffered a wheel impact, follow these steps to ensure your truck is returned to pre-accident condition:

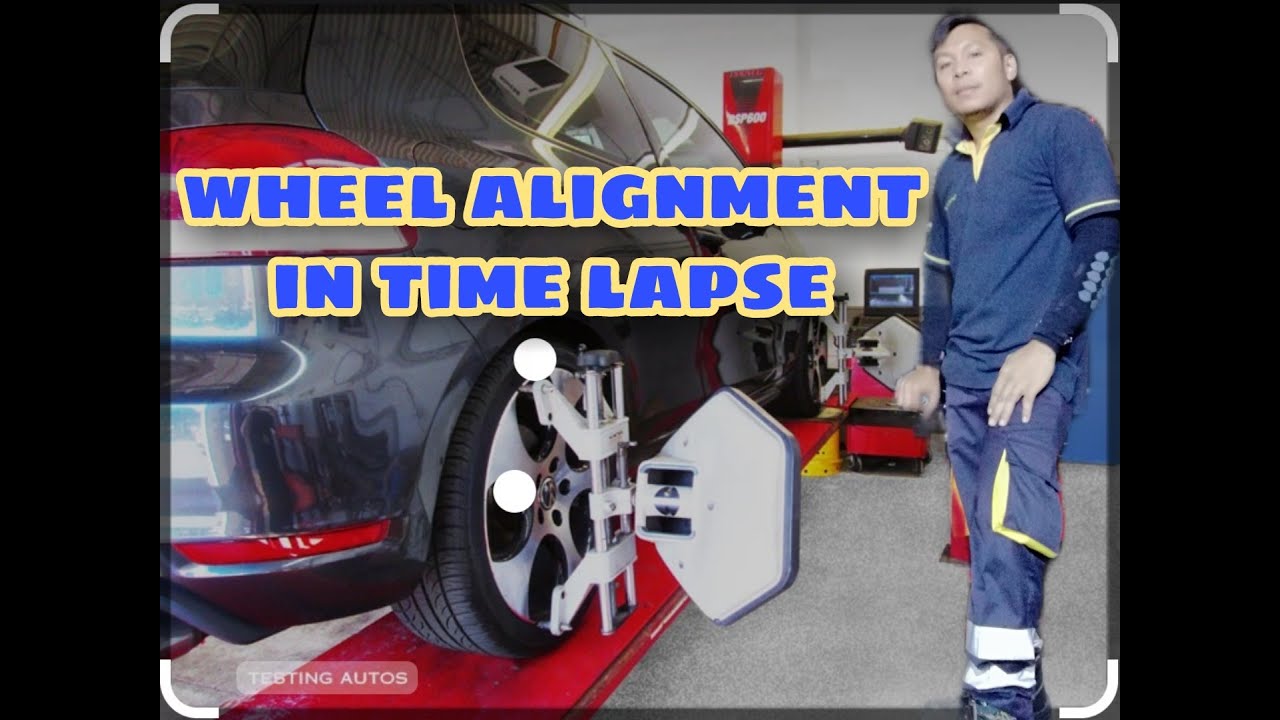

• Demand a Diagnostic Alignment: Do not settle for a visual inspection. A diagnostic alignment is the only way to identify bent internal components early in the process.
• Inspect the Wheel Bearing: Impacts that bend wheels often flat-spot the bearings. This may not make noise immediately, but it often leads to a loud humming or growling noise a few weeks after the repair. Ensure the hub assembly is part of the inspection.
• Check for Tire Depreciation: If your tires were already 70% worn before the accident, the insurance company might only pay for 30% of a new tire. This is a standard policy provision in many states, known as depreciation or betterment.
• OEM vs. Aftermarket Parts: For critical steering components on a heavy-duty truck, many manufacturers recommend Original Equipment Manufacturer (OEM) parts to ensure structural integrity. Review your policy to see if you have an OEM Parts Choice endorsement, or if your state allows the insurance company to specify Like Kind and Quality (used) parts.

Summary

The repair of a 2020 Ram 2500 after a wheel impact is about more than just aesthetics. It is a mechanical restoration of the vehicle's handling and safety systems. By focusing on the steering knuckle, brake integrity, and electronic calibrations, you ensure that your truck remains as capable and safe as the day you bought it.

If there is a disagreement between your shop and the insurance company, remember: the alignment printout is your best piece of evidence. It is a mathematical fact that cannot be ignored.

Disclaimer: Insurance policies and state laws vary. Always review your specific policy and consult with a qualified repair professional regarding the safety and structural integrity of your vehicle.
