2020 Jeep Gladiator Rear-Corner Collision Repair Guide

Written by Curtis Castiglione

A rear-corner collision on a 2020 Jeep Gladiator is one of the most deceptive types of damage a truck owner can encounter. At first glance, you might only see a cracked tail lamp and a dented bedside. To the untrained eye, it looks like a simple parts swap and some fresh paint.

However, because the Gladiator combines traditional body-on-frame truck architecture with modern towing electronics and Advanced Driver Assistance Systems (ADAS), a simple impact often triggers a complex chain of repairs. Understanding the relationship between physical damage and the insurance estimating process is vital to ensuring your Jeep is returned to its pre-accident condition safely.

Why did my initial insurance estimate change after the teardown?

It is common for an initial insurance estimate to be significantly lower than the final repair bill. This is not necessarily a sign of a bad adjuster; it is simply the nature of field estimates.

Adjusters typically write estimates based only on what is visible while the vehicle is fully assembled. For a 2020 Gladiator, the adjuster may only see the outer bedside panel and the tail lamp. However, once the vehicle arrives at a collision center and the rear bumper and trim are removed, hidden damage is almost always discovered.

This leads to an insurance supplement. A supplement is an additional claim for parts or labor that were not included in the original estimate. In a rear-corner hit, this often includes:

• Bent bumper brackets and reinforcements.
• Compressed or shifted bed mounting points.
• Pinched or stretched wiring harnesses shielded by the outer bodywork.
• Structural distortion of the rear body pillar.

Does insurance cover trailer wiring and electrical diagnostics?

If your Gladiator is equipped with a towing package, the trailer wiring connector is a high-priority inspection item. A common mistake owners make is assuming that because the plastic plug looks fine, the system works.

In reality, the internal metal pins can be bent, or the wiring harness behind the bumper can be crushed against the frame. Even a slight pinch in the wires can cause intermittent ground issues or trailer brake failures.

• The Insurance Aspect: Most policies cover the repair of components damaged in a loss, but the shop must prove the damage exists through a circuit test.
• The Mechanical Aspect: If a short circuit occurred during the impact, it could potentially damage the Body Control Module (BCM). This is considered mechanical damage resulting from a collision. It requires specialized diagnostic tools—not just a simple voltmeter—to identify and repair.

Why does my tailgate fit differently after the accident?

The bed of a 2020 Gladiator is a rigid box structure mounted to the frame. When the rear corner is hit, the energy travels through the bedside and can slightly distort the entire box.

If you notice that your tailgate is harder to close, or if the gaps between the tailgate and the bedside are uneven, the square of the bed has been compromised. During the inspection, the shop should check the bed mounting points where the box attaches to the frame. If these points have shifted, the entire bed may need to be realigned or the mounting hardware replaced. If a shop simply replaces the outer sheet metal without checking the structural alignment, your tailgate may never fit correctly again.

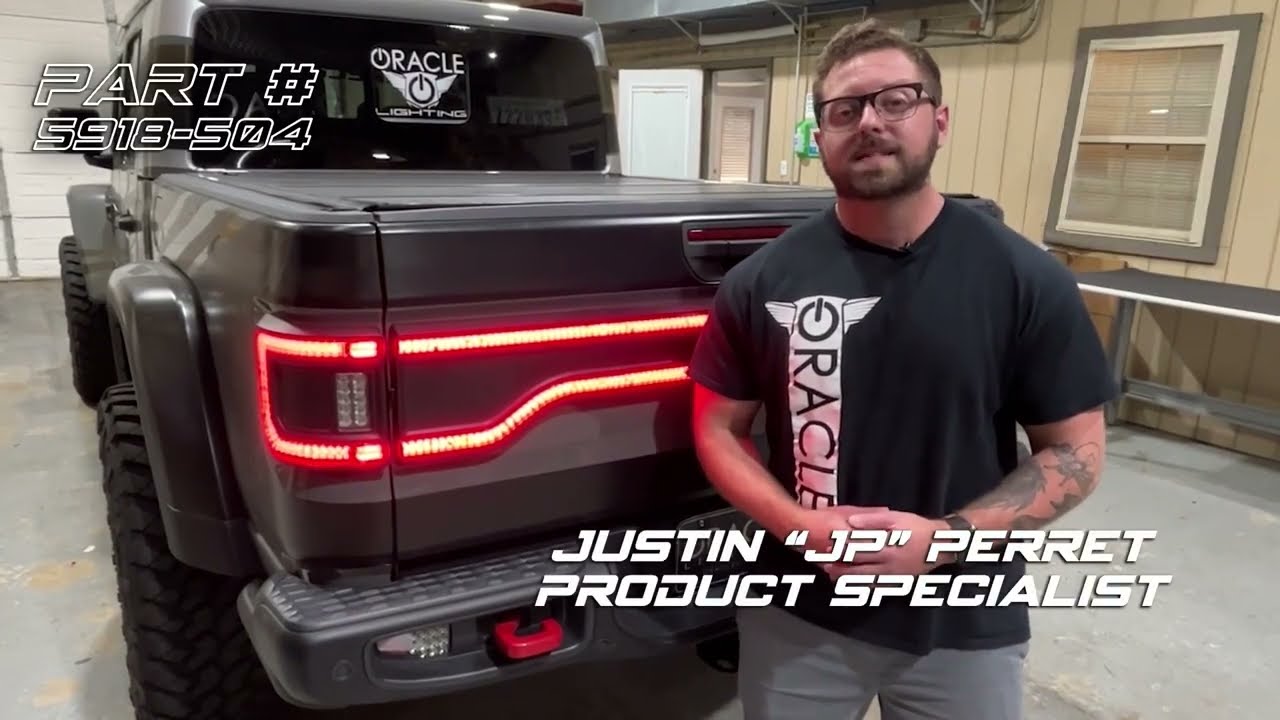

The Hidden Complexity of Tail Lamps and ADAS

Modern Jeeps are more than just steel and rubber; they are rolling computers. If your Gladiator features Blind Spot Monitoring, the sensors are typically located behind the tail lamp or within the rear bumper.

An impact does not have to break the sensor to cause a failure. The force of the collision can jar the sensor out of its precise alignment.

• Calibration is Mandatory: Jeep repair procedures often require a post-repair calibration of the blind-spot system whenever a tail lamp or bedside is replaced.
• The Cost: This involves specialized software and targets. While insurance generally pays for these calibrations, they are frequently omitted from initial estimates because they are not visible damage.

OEM Parts vs. Aftermarket Parts

One of the biggest points of contention in insurance claims is the use of Original Equipment Manufacturer (OEM) parts versus aftermarket or recycled parts.

Because the 2020 Gladiator is a modern vehicle with integrated safety tech, manufacturer recommendations often emphasize OEM components. While an aftermarket tail lamp may be cheaper, it may not have the same mounting tolerances for the Blind Spot Monitoring sensor. If the sensor cannot be calibrated because the aftermarket part is slightly off, the savings disappear instantly. You should review your policy and discuss part selection with your repair facility before work begins.

What should I do if I suspect hidden damage?

If you are researching a repair for your Gladiator, do not rely on a photo-based estimate from a mobile app. Your first step should be to authorize a teardown. A shop cannot give you an accurate price or a realistic timeline until they have disassembled the damaged area.

Ask the repair facility these four specific questions:

1. Did you perform a pre-scan? This checks the vehicle computers for hidden electrical codes before starting work.
2. Are the bed mounting points square? This ensures the bed has not shifted on the frame.
3. Has the trailer wiring been load-tested? This ensures the towing circuits can actually handle a trailer electrical load, rather than just passing a visual check.
4. Will the ADAS system require calibration? This ensures your Blind Spot Monitoring will function safely when you leave the shop.

While a rear-corner hit may seem like a minor cosmetic issue, the integration of towing electronics and safety sensors on a 2020 Jeep Gladiator requires a technical approach. Documentation is your best tool; ensure every diagnostic test and structural check is recorded by the shop to justify the cost of a proper, safe repair to your insurance company.
